Twin/Tri Lobe Air Blower

product

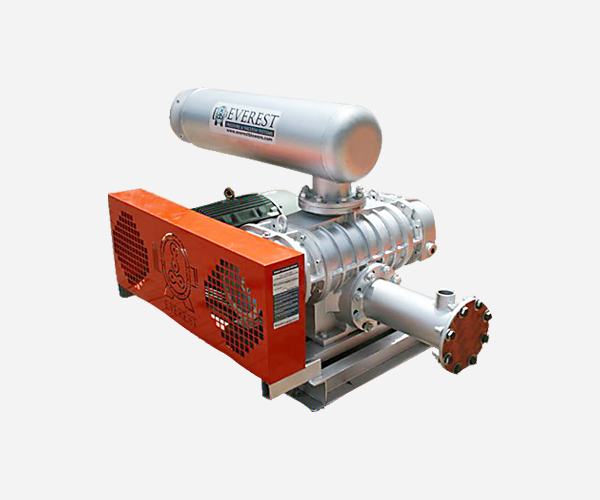

Twin Lobe Air Blower

The Twin Lobe Air Blower is engineered for efficient air handling in various applications, including wastewater treatment and industrial processes. Its robust design ensures reliable performance, delivering high airflow rates while maintaining low energy consumption. With minimal vibration and noise levels, this blower is ideal for environments that demand both efficiency and quiet operation.

Features
  • High Durability: Constructed with premium materials, the Twin Lobe Air Blower is designed to withstand harsh operating condition.
  • Energy Efficient: Its advanced engineering minimizes energy consumption, making it a cost-effective solution.
  • Low Maintenance: The blower's simple yet efficient design requires minimal maintenance, reducing downtime.
  • Versatile Applications: Suitable for various industries, the Twin Lobe Air Blower can be used in pneumatic conveying.

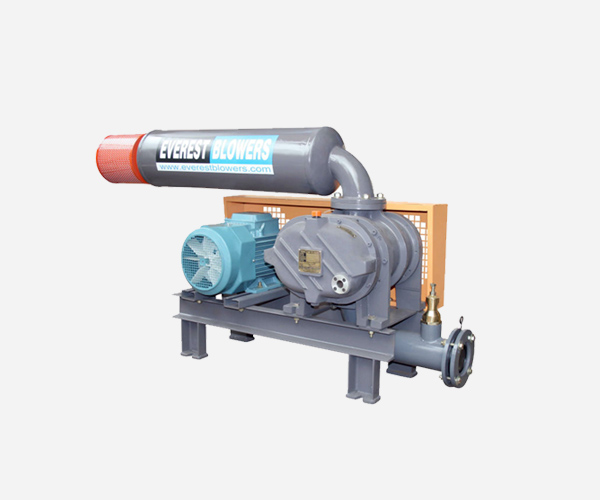

Tri Lobe Air Blower

The Tri Lobe Air Blower is engineered for efficient air handling in various applications, including wastewater treatment and industrial processes. Its robust design ensures reliable performance, delivering high airflow rates while maintaining low energy consumption. With minimal vibration and noise levels, this blower is ideal for environments that demand both efficiency and quiet operation.

Features
  • High Durability: Constructed with premium materials, the Tri Lobe Air Blower is designed to withstand harsh operating condition.
  • Energy Efficient: Its advanced engineering minimizes energy consumption, making it a cost-effective solution.
  • Low Maintenance: The blower's simple yet efficient design requires minimal maintenance, reducing downtime.
  • Versatile Applications: Suitable for various industries, the Tri Lobe Air Blower can be used in pneumatic conveying.
product

How Twin Lobe and Tri Lobe Blowers Work

Twin lobe and tri lobe blowers are positive displacement machines that deliver a constant volume of air regardless of system back pressure. In a twin lobe design, two figure-8 shaped lobes rotate in opposite directions inside a precision-machined housing, trapping air at the inlet and pushing it to the outlet without internal compression. A tri lobe blower adds a third lobe, which reduces pressure pulsation, giving smoother airflow, lower noise, and reduced vibration compared to an equivalent twin lobe unit.

Both designs are oil-free at the air-contact surfaces, making them suitable for aeration and other applications where air purity matters, and both are engineered for continuous 24/7 duty typical of STP and ETP operation.

Twin Lobe vs Tri Lobe: Which Should You Choose?

The two technologies deliver the same core performance — the difference is noise, vibration, and cost. For a full breakdown, see our Twin Lobe vs Tri Lobe vs Turbo Blower comparison guide, which covers efficiency, cost, and best-fit applications for each configuration in detail.

Technical Specifications

ParameterRange
Capacity40 m³/hr to 60,000 m³/hr
PressureUp to 1 kg/cm²
Noise Level80–95 dB(A) (twin lobe), 3–5 dB(A) quieter (tri lobe)
Drive TypeBelt-driven or direct-coupled
Body MaterialCast iron / high-grade aluminium alloy

Applications

Why Choose QuaSys Inc. for Twin/Tri Lobe Blowers?

QuaSys Inc. supplies both twin lobe and tri lobe configurations, sized correctly to your actual flow, pressure, and noise requirements rather than a one-size-fits-all recommendation. Every supply includes complete technical documentation, and our free Air Blower Sizing Calculator lets you get an instant capacity estimate before you even request a quote. AMC and genuine spare parts support is available pan-India.
